120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB

Name: 120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB
Brand: SunshineOpto
Price: 1 USD

Buy cheap 120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB product

Brand Name : SunshineOpto

Model Number : SUN-LD270X104-36H1-5050

Certification : SGS/ROHS

Place of Origin : Shenzhen,China

MOQ : 20

Price : need to negotiation

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 5000 sets per Month

Delivery Time : 5-8 working days

Packaging Details : 20 sets/Carton .

Product Kits : Led lens with silicon gasket ,pcb welding 5050 leds+HEAT SINK

Lens Size : 270*104 mm

Lens Angle : type iii-m degree

PCB Size : 255*89mm

PCB Circuit : 2 series 18 parallel

Match Leds : 3030 led

Contact Now

120W 36 Points 5050 LED Street Light Module TYPE III-M Degree

Product Information
	Module No	SUN-LD270X104-36H1-5050
	Lens Angle	TYPE III/ TYPE IV
	Lens Size	270X104mm
	PCB Size	255X89mm
	PCB Circuit	2 series 18 parallel
	Kits	led lens+silicon gasket+pcb welding leds+heat sink

Product Description:

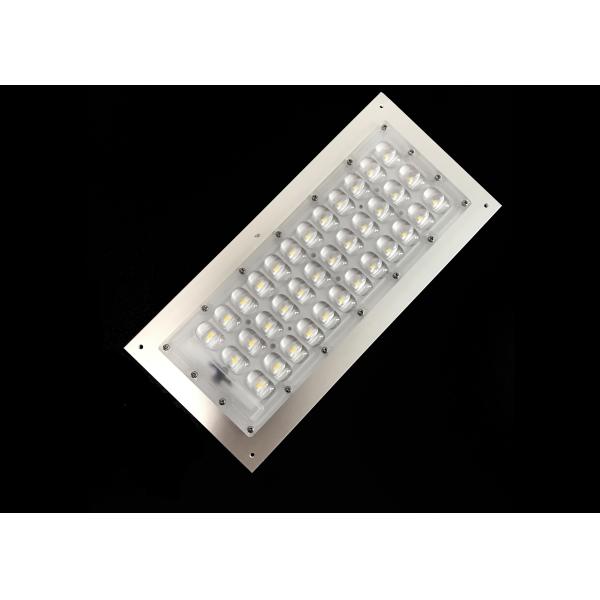

120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB

LED Board Details

PCB Size :255*89 mm

PCB Circuit :2 series 18 parallel for smd 5050 leds.

This module we have 2 kinds of led board for choose:

1, 144 points smd 3030 led board support 100W,

2, 36 points smd 5050 led board, support 120W.

Led Lens Details

Lens Size :270x104mm

Lens Angle : TYPE III, TYPE IV, TYPE V degree

Lens material :optical grade PC

Led lens drawing: (TYPE III)

120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB

Heat sink details:

Size: L 310*W 140*H 38mm,

Support maximum 120w cooling.

Heat sink drawing:

120W 36 Points SMD5050 LED Street Light Module 18 Parallel PCB

Test result:

Model No.		SUN-LD270X104-36H1-5050
Power (W)		40	50	100
Voltage (Vf/V)		47	47.5	48
Current (If/mA)		850	1050	2080
Color Temp Tc ( K)		5000	5000	5000
Efficiency (lm/W)	Without lens	186	175	142
	With lens	172	163	127
Luminous Flux (⏀v/lm)	Without lens	7433	8774	14200
	With lens	6895	8150	12700
Color Index (Ra)		70
Lens beam angle		TYPE III degree
Wick		36pcs 5050 Led
Working temperature(℃)		-30-50
Storage temperature(℃)		-30-65
Server Life (H)		50000
