56-in-1 SMD 3030 LED Street Light Module Optical Grade PC Lens for Road, Highway & Area Lighting
Product Overview
The 56-in-1 SMD 3030 LED Street Light Lens Module is a highly integrated optical solution designed for LED street lights, roadway lighting, parking lot lighting, tunnel lighting, and area lighting applications. Featuring 56 precision optical lens units, high-transmittance optical-grade PC material, and compatibility with SMD 3030 LEDs, this module delivers excellent light distribution, improved roadway visibility, and enhanced energy efficiency. The module is particularly suitable for LED street light manufacturers, municipal lighting contractors, and outdoor lighting retrofit projects.
Key Features
- Optical-grade PC material provides excellent light transmission while maintaining long-term UV resistance and outdoor durability.
- Available beam patterns include,suitable for various roadway widths and mounting heights.
- This modular design allows existing street light housings to be reused, significantly reducing retrofit costs compared to complete fixture replacement.
- Directional light distribution ensures dark sky compliance and eliminates light pollution
Technical Specifications
| Model No. | SUN-L56W-155x80 |
| Lens Material | Optical grade PC |
| Lens Size | 256.6x78.6x7.1mm |
| Lens Beam Angle | 155x80 degree |
| PCB Size | 233x55x1.5mm |
| PCB Circuit | 7 series 8 parallel |
| Quality Guarantee | Defective items replaced or refunded upon providing photographic evidence |
| Main Market | Global distribution |
3030 LED Lens Advantages
- High-quality LED chips for superior performance
- CE-certified drivers with easy repair/replacement
- Multiple options: AC 100-240V input voltage, waterproof or non-waterproof versions
- Up to 90% energy cost reduction compared to traditional lamps
- Up to 90% maintenance cost reduction with minimal maintenance requirements
- 2-year warranty with top-quality construction
- LM80 testing reports available upon request

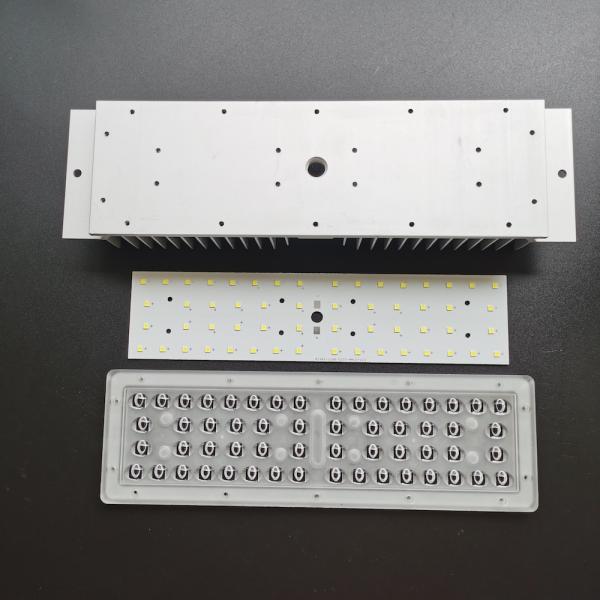

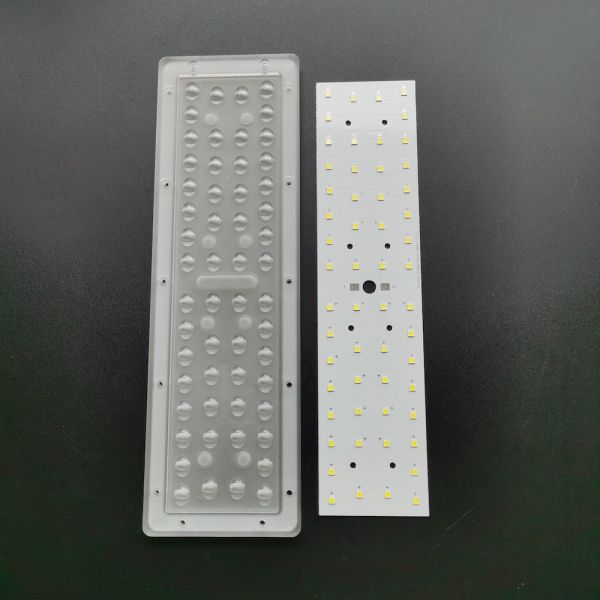

56 in 1 led module for street light

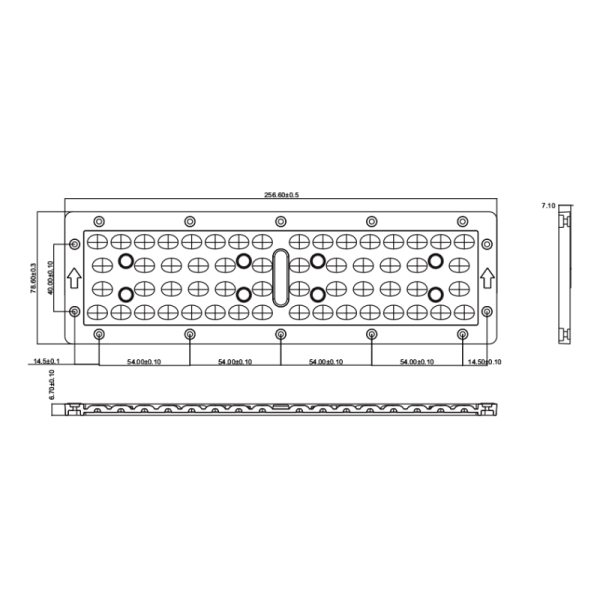

56 in 1 Lens Size Drawing
Applications
- Street Lighting
- Highway Lighting
- Urban Road Lighting
- Parking Lot Lighting
- Tunnel Lighting
- Area Lighting
- Outdoor Commercial Lighting
Shipping & Delivery Informations
| Shipping Method | Delivery Time |
| DHL/UPS/TNT/FEDEX | 4-5 working days |
| EMS | 10-15 working days |
| HK Post Air Mail Register | 15-18 working days |
| Trade Terms | FOB | EXW | CNF |
| Sample Availability | YES |
| Standard Delivery Time | 3-4 working days |
FAQ
Q:What beam angles are available?
A:Available beam angles include 30°, 60°, 90°, 30×70°, 60×90°, 145×70°, and 155×80°.
Q:What material is used for the lens?
A:Optical-grade polycarbonate (PC) with excellent transmittance, UV resistance, and durability.
Q:Is the lens suitable for outdoor environments?
A:Yes. The optical PC material is designed for long-term outdoor lighting applications.
Q:Do you provide OEM and ODM services?
A:Yes. We offer customized optics, PCB design, beam angle development.
